Feed Through Terminal Blocks

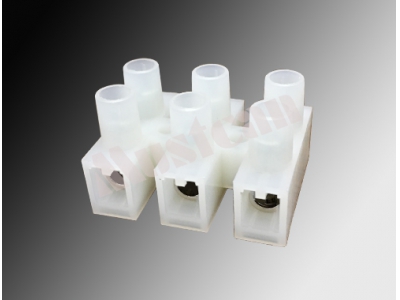

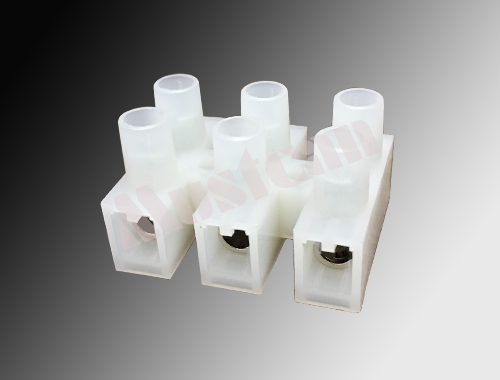

MF35-120-036
| Part No.： | MF35-120-036 |
| Pitch(mm)： | 12.0mm |
| Current Rating(A)： | 35A |
| Voltage Rating： | 300V |
-

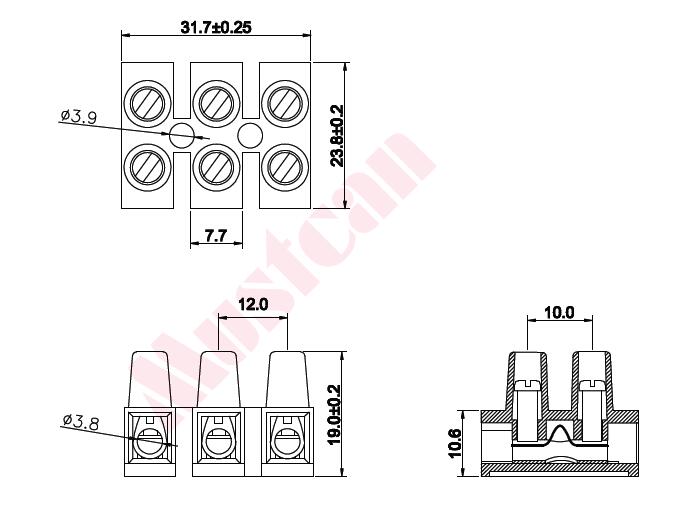

Products SeriesFeed Through TerminalSeries NumberMF35-120-036Test standardUL1059 / IEC60998-1Pitch [ mm ]12.0Poles2P~12PUL Test DataUse groupBCDRated voltage [ V ]300//Rated current [ A ]35//Rated connection capacity (solid/stranded) [AWG]10~22IEC Test DataContamination ClassⅢⅢⅡSurge voltage category3//Rated voltage [ V ]500//Rated current [ A ]41//Rate Surge Voltage [ KV ]2//Rated connection capacity (solid/stranded) [mm²]2.5~6.0General dataInflammability class UL94V-2Operation temperature [℃]-35℃～+110℃Relative humidity5%~95%ScrewM3.5Material and platingHousingPA66Screws / platingSteel / Zinc platedCurrent connectorBrass / Nickel PlatedWire protectorStainless steelDrawing
How to orderX X X X – X X X – X X X X X
Series no. Model no. poles color special demand
How to order：MF35 – 120 – X X X X X
POLES COLOR Special
02 2poles 1 Green 绿 blank is standard
03 3poles 2 Black 黑 XX according to
04 4poles 3 Grey 灰 customer special
….. 4 Blue 蓝 demand
12 12poles 5 Red 红
6 White 白
7 Yellow黄
8 Purple 紫
