PCB Screw Terminal Blocks

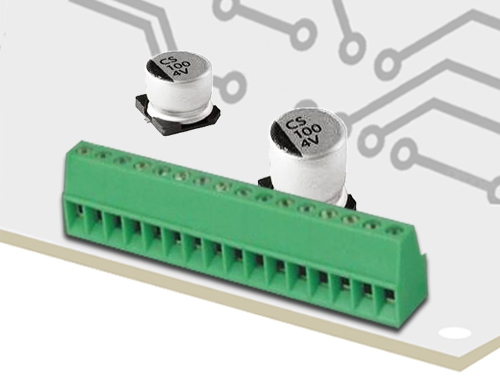

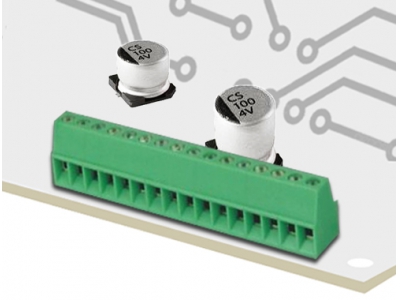

ME06-151
| Part No.： | ME06-151 |
| Pitch(mm)： | 2.54mm |
| Current Rating(A)： | 6A |
| Voltage Rating： | 150V |
-

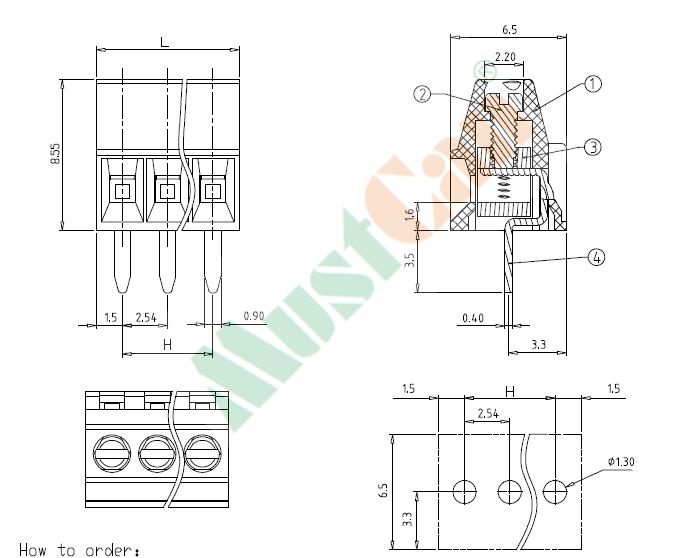

Products SeriesEuro RaisingSeries NumberME06-151Test standardUL1059 / IEC60998-1Pitch [ mm ]2.54Poles2P~24PUL Test DataUse groupBCDRated voltage [ V ]150//Rated current [ A ]6//Rated connection capacity (solid/stranded) [AWG]18~24Rated torque [Lb. in]1.3IEC Test DataContamination ClassⅢⅢⅡSurge voltage category322Rated voltage [ V ]60160250Rated current [ A ]888Rate Surge Voltage [ KV ]1.51.51.5Rated connection capacity (solid/stranded) [mm²]0.5~1.0Rated torque [ N.m ]0.2General dataInflammability class UL94V-0Operation temperature [℃]-40℃～+120℃Relative humidity5%~95%ScrewM1.6Stripping Length4~5mmInspection standardMIL-STD-105E IIWarranty18 monthsMaterial and platingHousingPA66Screws / platingSteel / Zinc platedTerminal Pin / platingBrass / Tin platedClamp Cage / platingBrass / Tin platedWire protectorStainless steelDrawing
How to orderX X X X – X X X – X X X X X
Series no. Model no. poles color special demand
How to order：ME06 – 151 – X X X X X
POLES COLOR Special
02 2poles 1 Green 绿 blank is standard
03 3poles 2 Black 黑 XX according to
04 4poles 3 Grey 灰 customer special
….. 4 Blue 蓝 demand
24 24poles 5 Red 红
6 White 白
7 Yellow黄
8 Purple 紫
