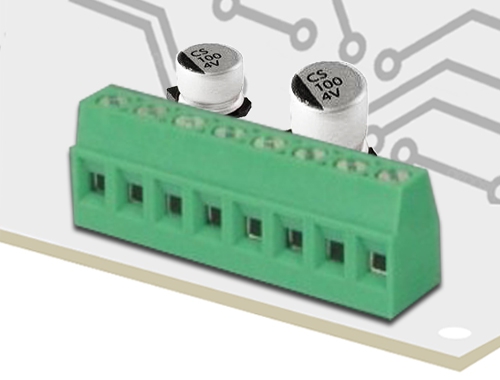

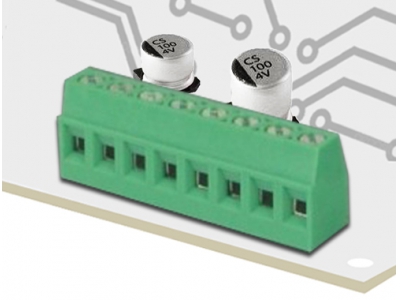

PCB Screw Terminal Blocks
ME10-201
| Part No.： | ME10-201 |
| Pitch(mm)： | 3.50mm |
| Current Rating(A)： | 10A |
| Voltage Rating： | 300V |
-

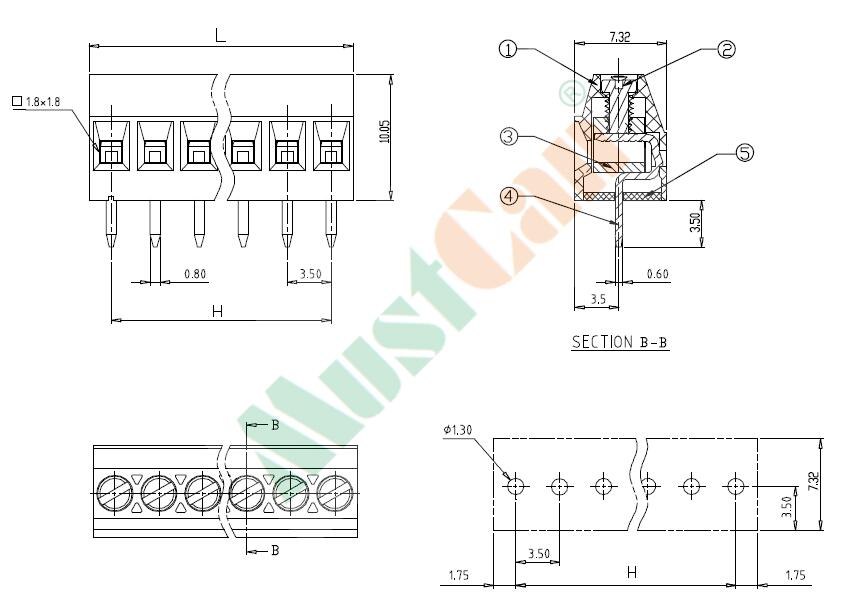

Products SeriesEuro RaisingSeries NumberME10-201Test standardUL1059 / IEC60998-1Pitch [ mm ]3.50Poles2P~24PUL Test DataUse groupBCDRated voltage [ V ]300//Rated current [ A ]10//Rated connection capacity (solid/stranded) [AWG]16~24Rated torque [Lb. in]1.7IEC Test DataContamination ClassⅢⅢⅡSurge voltage category322Rated voltage [ V ]160200400Rated current [ A ]121212Rate Surge Voltage [ KV ]2.52.52.5Rated connection capacity (solid/stranded) [mm²]0.5~1.5Rated torque [ N.m ]0.3General dataInflammability class UL94V-0Operation temperature [℃]-40℃～+120℃Relative humidity5%~95%ScrewM2Stripping Length5~6mmInspection standardMIL-STD-105E IIWarranty18 monthsMaterial and platingHousingPA66Screws / platingSteel / Zinc platedTerminal Pin / platingBrass / Tin platedClamp Cage / platingBrass / Tin platedWire protectorStainless steelCoverPA66Drawing
How to orderX X X X – X X X – X X X X X
Series no. Model no. poles color special demand
How to order：ME10 – 201 – X X X X X
POLES COLOR Special
02 2poles 1 Green 绿 blank is standard
03 3poles 2 Black 黑 XX according to
04 4poles 3 Grey 灰 customer special
….. 4 Blue 蓝 demand
24 24poles 5 Red 红
6 White 白
7 Yellow黄
8 Purple 紫
