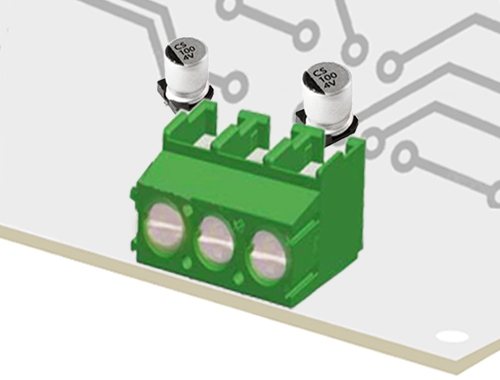

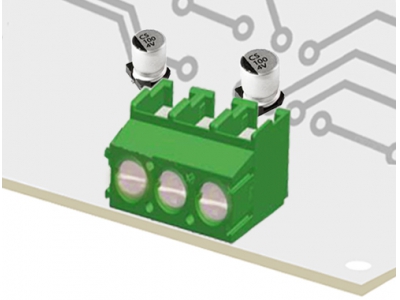

Products Series	Wire Protector
Series Number	ME15-480V
Test standard	UL1059 / IEC60998-1
Pitch [ mm ]	5.00
Poles	2P~24P
UL Test Data
Use group	B	C	D
Rated voltage        [ V ]	300	/	/
Rated current         [ A ]	15	/	/
Rated connection capacity (solid/stranded) [AWG]	12~24
Rated torque     [Lb. in]	2.8~3.0 Lb. in
IEC Test Data
Contamination Class	Ⅲ	Ⅲ	Ⅱ
Surge voltage category	3	2	2
Rated voltage       [ V ]	250	400	630
Rated current        [ A ]	10	10	10
Rate Surge Voltage   [ KV ]	4	4	4
Rated connection capacity (solid/stranded) [mm]	0.5~2.0
Rated torque        [ N.m ]	0.5
General data
Inflammability class UL94	V-0
Operation temperature     [℃]	-40℃～+120℃
Relative humidity	5%-95%
Screw	M2.6
Stripping Length	5~6mm
Inspection standard	MIL-STD-105E II
Warranty	18 months
Material and plating
Housing	PA66
Screws / plating	Steel / Zinc plated
Terminal Pin / plating	Brass / Tin plated
Clamp Cage / plating	/
Wire protector	Stainless steel

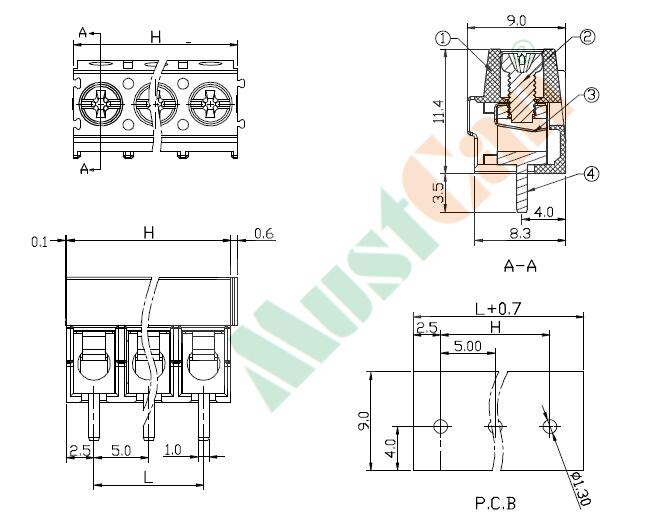

Drawing

How to order

X  X  X  X  –  X  X  X   –    X  X        X         X  X
           ↓              ↓              ↓         ↓         ↓

Series no.    Model no.     poles       color    special demand



MA15  –  480V –     X X             X               X X
                                             ↓                    ↓                       ↓
                                          POLES          COLOR            Special
                                                         02 2poles       1 Green              blank is standard

                                              03 3poles       2 Black               XX according to

                  6 White
                                                                        7 Yelloow
                                                              8 Purple
