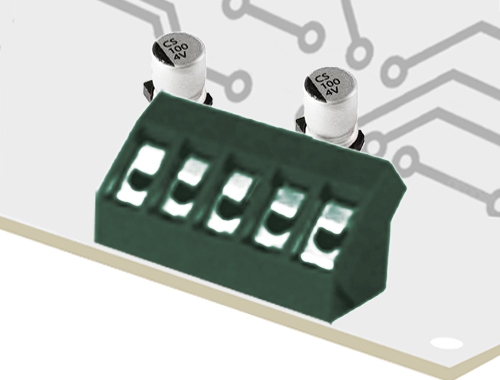

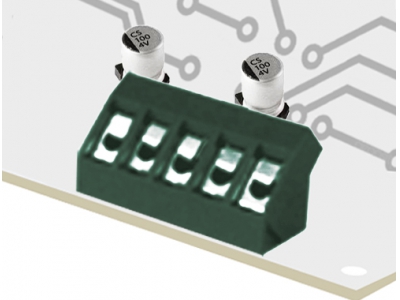

Wire Protector Terminal Blocks
ME15-482
| Part No.： | ME15-482 |
| Pitch(mm)： | 5.00mm |
| Current Rating(A)： | 15A |
| Voltage Rating： | 300V |
-

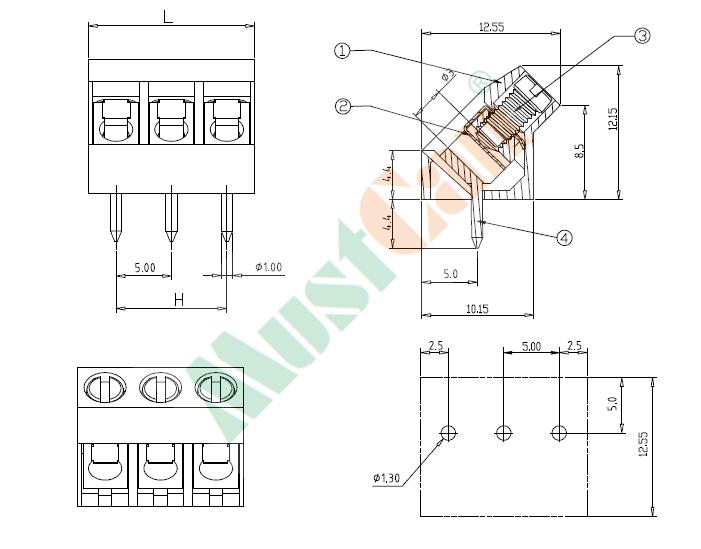

Products SeriesWire Protector SystemSeries NumberME15-482Test standardUL1059 / IEC60998-1Pitch [ mm ]5.00Poles2P~24UL Test DataUse groupBCDRated voltage [ V ]300//Rated current [ A ]15//Rated connection capacity (solid/stranded) [AWG]14~22Rated torque [Lb. in]3.0 Lb. inIEC Test DataContamination ClassⅢⅢⅡSurge voltage category322Rated voltage [ V ]250400630Rated current [ A ]101010Rate Surge Voltage [ KV ]444Rated connection capacity (solid/stranded) [ mm²]0.6~1.6Rated torque [ N.m ]0.5General dataInflammability class UL94V-0Operation temperature [℃]-40℃～+120℃Relative humidityScrewM3Stripping Length6~7mm/Inspection standardMIL-STD-105E IIWarranty18 monthsMaterial and platingHousingPA66Screws / platingSteel / Zinc platedTerminal Pin / platingBrass / Tin platedClamp Cage / plating/Wire protectorStainless steelDrawing
How to orderX X X X – X X X – X X X X XSeries no. Model no. poles color special demand
How to order：MA15 – 482 – X X X X X
POLES COLOR Special
02 2poles 1 Green 绿 blank is standard
03 3poles 2 Black 黑 XX according to
04 4poles 3 Grey 灰 customer special
….. 4 Blue 蓝 demand
24 24poles 5 Red 红
6 White 白
7 Yellow黄
8 Purple 紫
