Products Series

Wire Protector

Series Number

ME15-485V

Test standard

UL1059 / IEC60998-1

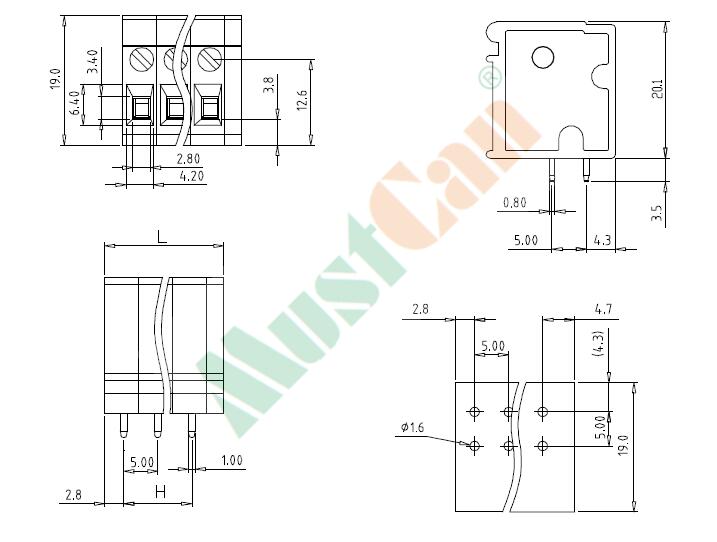

Pitch [ mm ]

5.00

Poles

2P~24P

UL Test Data

Use group

B

C

D

Rated voltage        [ V ]

300

/

/

Rated current         [ A ]

20

/

/

Rated connection capacity (solid/stranded) [AWG]

  12~22

Rated torque     [Lb. in]

  2.4 Lb. in

IEC Test Data

Contamination Class

Ⅲ

Ⅲ

Ⅱ

Surge voltage category

3

2

2

Rated voltage       [ V ]

250

400

630

Rated current        [ A ]

10

10

10

Rate Surge Voltage   [ KV ]

4

4

4

Rated connection capacity (solid/stranded) [mm²]

0.5~2.5

Rated torque        [ N.m ]

0.4

General data

Inflammability class UL94

V-0

Operation temperature     [℃]

-40℃～+120℃

Relative humidity

5%~95%

Screw

M2.5

Stripping Length

5~6mm

Inspection standard

MIL-STD-105E II

Warranty

18 months

Material and plating

Housing

PA66

Screws / plating

Steel / Zinc plated

Terminal Pin / plating

Brass / Tin plated

Clamp Cage / plating

      /

Wire protector

Stainless steel
