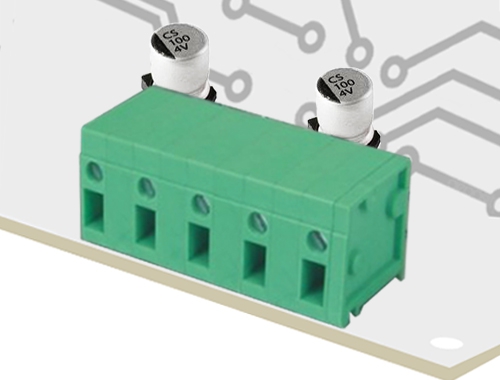

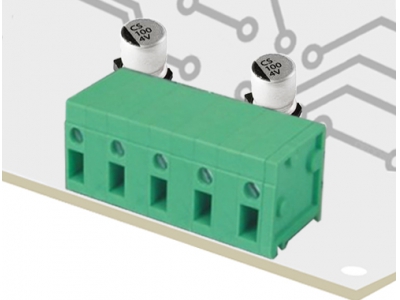

Wire Protector Terminal Blocks
ME15-885
| Part No.： | ME15-885 |
| Pitch(mm)： | 10.0mm |
| Current Rating(A)： | 15A |
| Voltage Rating： | 300V |
-

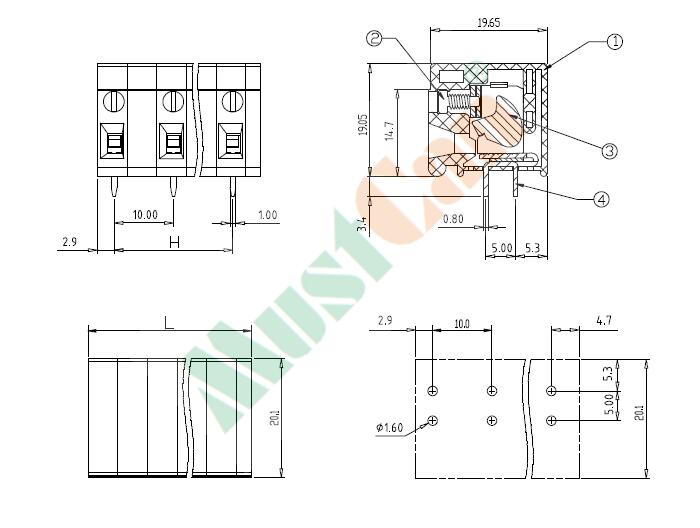

Products SeriesWire ProtectorSeries NumberME15-885Test standardUL1059 / IEC60998-1Pitch [ mm ]10.0Poles2P~24PUL Test DataUse groupBCDRated voltage [ V ]300//Rated current [ A ]20//Rated connection capacity (solid/stranded) [AWG]12~22Rated torque [Lb. in]2.4IEC Test DataContamination ClassⅢⅢⅡSurge voltage category322Rated voltage [ V ]250400630Rated current [ A ]252525Rate Surge Voltage [ KV ]444Rated connection capacity (solid/stranded) [mm²]0.6~4.0Rated torque [ N.m ]0.4General dataInflammability class UL94V-0Operation temperature [℃]-40℃～+120℃Relative humidity5%~95%ScrewM2.5Stripping Length10~11mmInspection standardMIL-STD-105E IIWarranty18 monthsMaterial and platingHousingPA66Screws / platingSteel / Zinc platedTerminal Pin / platingBrass / Tin platedClamp Cage / plating/Wire protectorStainless steelDrawing
How to orderX X X X – X X X – X X X X X
Series no. Model no. poles color special demand
How to order：MA15 – 885 – X X X X X
POLES COLOR Special
02 2poles 1 Green 绿 blank is standard
03 3poles 2 Black 黑 XX according to
04 4poles 3 Grey 灰 customer special
….. 4 Blue 蓝 demand
24 24poles 5 Red 红
6 White 白
7 Yellow黄
8 Purple 紫
