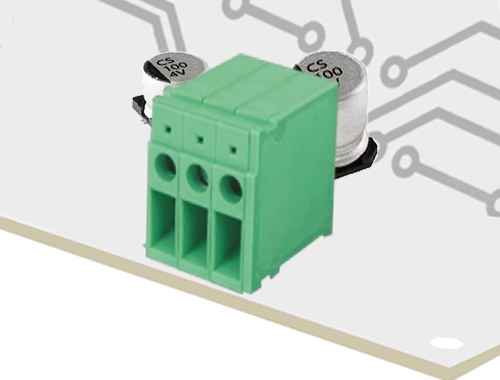

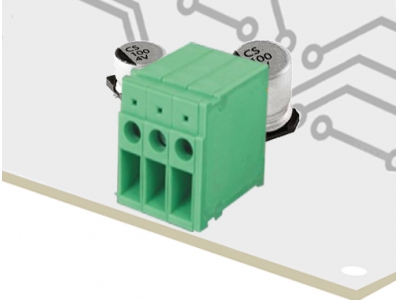

Wire Protector Terminal Blocks
ME30-598
| Part No.： | ME30-598 |
| Pitch(mm)： | 6.35mm |
| Current Rating(A)： | 30A |
| Voltage Rating： | 300V |
-
Products SeriesWire ProtectorSeries NumberME30-598Test standardUL1059 / IEC60998-1Pitch [ mm ]6.35Poles2P~24PUL Test DataUse groupBCDRated voltage [ V ]300//Rated current [ A ]30//Rated connection capacity (solid/stranded) [AWG]10~24Rated torque [Lb. in]4.3IEC Test DataContamination ClassⅢⅢⅡSurge voltage category322Rated voltage [ V ]250400630Rated current [ A ]353535Rate Surge Voltage [ KV ]444Rated connection capacity (solid/stranded) [mm²]0.5~6.0Rated torque [ N.m ]0.75General dataInflammability class UL94V-0Operation temperature [℃]-40℃～+120℃Relative humidity5%~95%ScrewM3Stripping Length15~16mmInspection standardMIL-STD-105E IIWarranty18 monthsMaterial and platingHousingPA66Screws / platingSteel / Zinc platedTerminal Pin / platingBrass / Tin platedClamp Cage / plating/Wire protectorStainless steelDrawing
How to orderX X X X – X X X – X X X X X
Series no. Model no. poles color special demand
How to order：MA30 – 598 – X X X X X
POLES COLOR Special
02 2poles 1 Green 绿 blank is standard
03 3poles 2 Black 黑 XX according to
04 4poles 3 Grey 灰 customer special
….. 4 Blue 蓝 demand
24 24poles 5 Red 红
6 White 白
7 Yellow黄
8 Purple 紫
